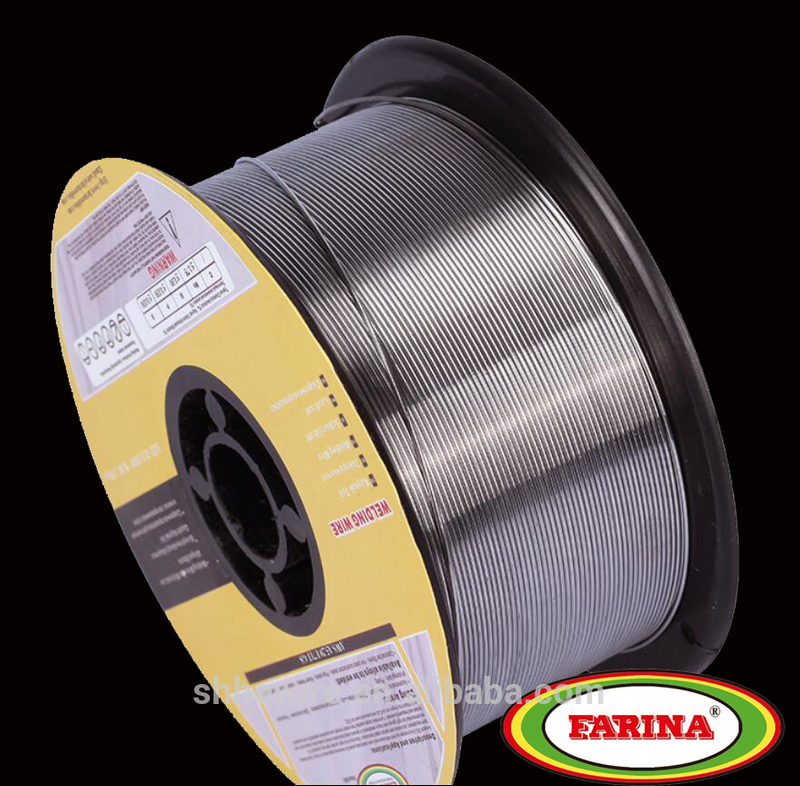

It is a kind of gas-shielded flux-cored welding wire for atmospheric corrosion-resistant steel. FRN-YT551T1-W is a kind of titania type CO2 gas-shielded flux-cored welding wire with atmospheric corrosion-resistant steel core. It has excellent
welding performance, stable arc, good slag detachability, beautiful appearance of weld and high welding efficiency. Suitable for downhand welding and horizontal welding. All-position welding. The weld metal has excellent atmospheric corrosion-resistance.
It is a kind of gas-shielded flux-cored welding wire for atmospheric corrosion-resistant steel. FRN-YT551T1-W is a kind of titania type CO2 gas-shielded flux-cored welding wire with atmospheric corrosion-resistant steel core. It has excellent
welding performance, stable arc, good slag detachability, beautiful appearance of weld and high welding efficiency. Suitable for downhand welding and horizontal welding. All-position welding. The weld metal has excellent atmospheric corrosion-resistance.
Used for welding 590MPa atmospheric corrosion-resistant steel structures, such as railway locomotive vehicles, offshore engineering, bridges, etc.
Used for welding 590MPa atmospheric corrosion-resistant steel structures, such as railway locomotive vehicles, offshore engineering, bridges, etc.
Typical Chemical Composition of weld metal (%)
C | Mn | Si | P | S | other |
0.05 | 1.14 | 0.40 | 0.016 | 0.014 | Cu 0.380 Ni 0.450 Cr 0.500 |
Typical Deposited Metal Mechanical Feature(CO2 Shielding Gas)
Yield Strength ReL (Mpa) | Tensile Strength Rm (Mpa) | Elongation δ5(%) | Impact test | |
Temperature(℃) | Impact energy KV2 (J) | |||
540 | 610 | 27 | -30 | 90 |
Reference Current (DC+)
Wire Diameter(mm) | Welding Current(A) | Welding Voltage(V) | Flow Rate(L/min) |
φ1.2 | 120~300 | 22~30 | 15~25 |
φ1.4 | 150~350 | 23~32 | 15~25 |
φ1.6 | 180~400 | 24~34 | 15~25 |
Packing terms
Diameter | 0.8mm | 0.9mm | 1.0mm | 1.2mm | 1.6mm |
Plastic spool 1kg D100mm | √ | √ | √ | ||
Plastic spool 5kg D200mm | √ | √ | √ | √ | |
Plastic spool 15kg D270mm | √ | √ | √ | √ | √ |
Typical Chemical Composition of weld metal (%)
C | Mn | Si | P | S | other |
0.05 | 1.14 | 0.40 | 0.016 | 0.014 | Cu 0.380 Ni 0.450 Cr 0.500 |
Typical Deposited Metal Mechanical Feature(CO2 Shielding Gas)
Yield Strength ReL (Mpa) | Tensile Strength Rm (Mpa) | Elongation δ5(%) | Impact test | |
Temperature(℃) | Impact energy KV2 (J) | |||
540 | 610 | 27 | -30 | 90 |
Reference Current (DC+)
Wire Diameter(mm) | Welding Current(A) | Welding Voltage(V) | Flow Rate(L/min) |
φ1.2 | 120~300 | 22~30 | 15~25 |
φ1.4 | 150~350 | 23~32 | 15~25 |
φ1.6 | 180~400 | 24~34 | 15~25 |
Packing terms
Diameter | 0.8mm | 0.9mm | 1.0mm | 1.2mm | 1.6mm |
Plastic spool 1kg D100mm | √ | √ | √ | ||
Plastic spool 5kg D200mm | √ | √ | √ | √ | |
Plastic spool 15kg D270mm | √ | √ | √ | √ | √ |
